The Underfloor Heating Pump Is Running—So Why Is the Floor Still Cold?

When an underfloor heating pump is running, many users think the system should work normally.

But in real projects, a running pump does not always mean the floor is getting enough warm water.

The pump may be turning. The power may be on. The motor may sound normal. But if the system has low flow, trapped air, closed valves, wrong pump sizing, or poor loop balancing, the floor can still stay cold.

For installers and project buyers, the key point is simple: pump operation is not the same as correct circulation.

Quick Answer

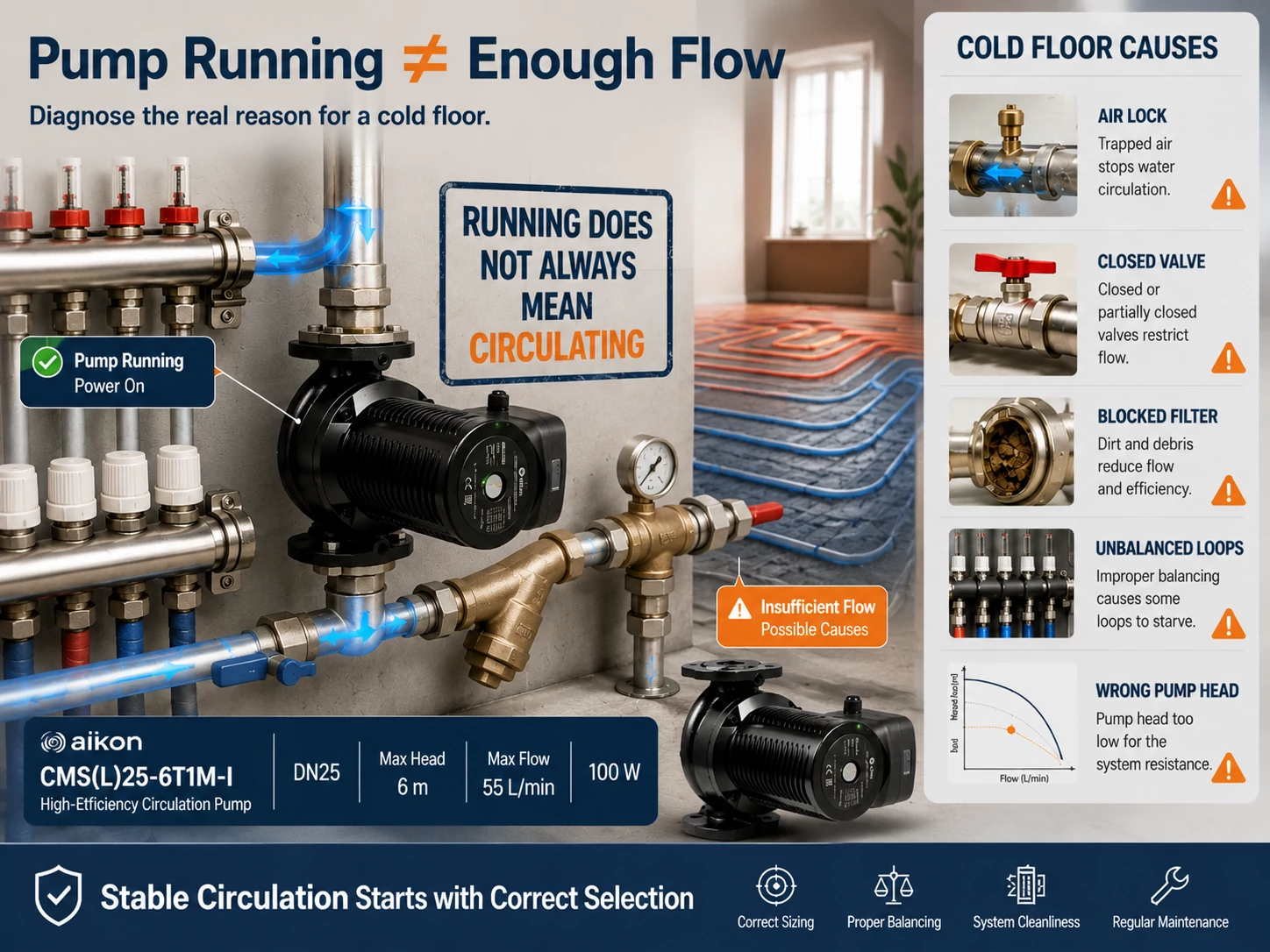

Underfloor heating can stay cold even when the circulation pump is running because the system may not have enough flow. Common causes include air in the pipes, blocked filters, closed valves, unbalanced loops, insufficient pump head, incorrect pump speed, or wrong pump selection.

A Running Pump Does Not Guarantee Enough Flow

The job of an underfloor heating pump is to move warm water through floor heating loops.

However, floor heating systems usually have long pipes and multiple loops. Some loops are short, while others are much longer. Each loop has different resistance.

If the pump cannot provide enough flow and head, warm water may not reach all areas evenly. One room may feel warm, while another room stays cold.

That is why installers should not only check whether the pump is running. They should also check whether the system has enough circulation flow.

Common Reasons the Floor Is Still Cold

The first common reason is air inside the system. Air can block water movement and reduce heating performance.

The second reason is closed or partly closed valves. If manifold valves, thermostatic valves, or control valves are not open correctly, warm water cannot enter the heating loops.

The third reason is blocked filters or dirty water. Dirt, scale, or debris can increase system resistance and reduce flow.

The fourth reason is poor loop balancing. Water naturally takes the easier path. Shorter loops may receive more flow, while longer loops may receive less.

The final reason may be wrong pump selection. If the pump head is too low, it cannot overcome loop resistance. If the pump is too large, it may create noise or unstable control.

What Installers Should Check First

Before replacing the pump, installers should check the whole system.

Start with these points:

Is the system filled with water?

Has the system been fully vented?

Are the manifold valves open?

Is the filter clean?

Are all loops balanced?

Does the pump match the required flow and head?

Is the pump speed or working mode correct?

These checks can help avoid replacing a pump when the real problem is in the system.

How to Select the Right Pump for Underfloor Heating

The right pump should be selected by flow rate and head, not only by pipe size.

Flow rate tells how much warm water the system needs. Head tells how much resistance the pump must overcome. Together, they define the working point of the pump.

For underfloor heating projects, buyers should provide:

Total heating area

Number of loops

Loop length

Required flow rate

Required head

Water temperature

Voltage and installation conditions

With this information, the supplier can recommend a more suitable pump.

AIKON CMS Reference Model for Underfloor Heating

For small residential underfloor heating or mixed-water heating circulation, AIKON CMS(L)25-6T1M-I can be used as a reference model when the system requires a compact threaded circulation pump.

This model is suitable as a starting point for small heating loops because it provides a balance of compact installation, three-speed adjustment, and practical circulation performance. The final model still needs to be confirmed by the project duty point.

For longer heating loops, larger manifolds, or systems with higher resistance, buyers may need to consider a higher-head model, such as a DN25-8, DN25-12, or larger DN32 option. The final selection should always be checked by flow, head, loop length, water temperature, voltage, and installation space.

How AIKON CMS Pumps Support Floor Heating Systems

AIKON CMS Canned Motor Pumps are designed for circulation applications that require stable operation, low noise, compact structure, and reduced leakage risk.

For underfloor heating systems, these features are important because the pump often runs for long hours and may be installed close to living areas. A noisy or unstable pump can quickly affect user comfort.

AIKON can support installers, distributors, and project buyers with model selection, application matching, bulk supply, and OEM support. Before ordering, customers can send required flow rate, head, liquid temperature, voltage, pipe size, and installation conditions. This helps reduce the risk of choosing a pump that is running but not providing enough circulation.

For projects such as underfloor heating, HVAC circulation, hot water circulation, and commercial building systems, AIKON CMS pumps provide a practical option for customers who need reliable circulation and clearer selection support.

FAQ

1.Why is my underfloor heating cold even when the pump is running?

Because the pump may be running without enough flow. Air, blocked filters, closed valves, unbalanced loops, or wrong pump selection can all reduce circulation.

2.Should I replace the underfloor heating pump immediately?

Not always. First check air, valves, filters, loop balancing, pump speed, and whether the pump matches the required flow and head.

3.Which AIKON CMS pump can be considered for small underfloor heating?

For small residential underfloor heating or heating circulation, AIKON CMS(L)25-6T1M-I can be used as a reference model. Final selection should still be confirmed by actual flow, head, loop length, and installation conditions.

Conclusion

If the floor is still cold, do not only ask whether the pump is running.

Ask whether the system has enough flow, correct head, clean water, open valves, balanced loops, and proper pump selection.

Visit the AIKON CMS Canned Motor Pump product page to explore circulation pump solutions for underfloor heating, HVAC, hot water, and building systems. Send your flow and head requirements for model selection support.
